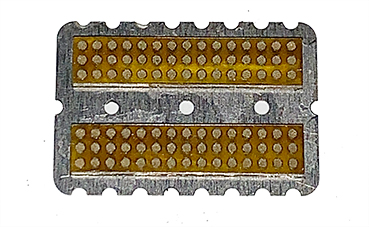

Conductive elastomer IC test sockets for BGA
All-In-Win Conductive Elastomer (Rubber) IC Test Sockets provide a reliable and cost-effective solution for testing integrated circuits (ICs) with ball grid array (BGA) packages. Our sockets are made from a flexible, conductive rubber material with embedded conductive particles, ensuring excellent electrical performance and durability.
Features
- Easy alignment and mating with BGA packages
- Reusable and durable conductive elastomer material
- Low insertion force for reduced risk of damage
- Wide operating temperature range
- Customizable for various BGA package sizes and configurations
Applications
- IC development and testing
- Quality control
- Failure analysis
Specification
| Parameter | Value |
|---|---|
| Material | Conductive polymer composite |
| Conductive particles | Gold, Silver or carbon |
| Operating temperature | -78°C to 150°C |
| Resistance | <0.10 ohm per contact |
| Current capacity | Up to 2A per contact |
| Contact durability | >10,000 cycles |
Ordering Information
To order or request a quote for our Conductive Elastomer IC Test Sockets, including the BGA package size and customizable configuration, please email us with your requirements at info@all-in-win.com.
